NEMA 34 Hybrid Stepper Motor has the combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This motor has a step angle of 1.8 deg., which means that it has 200 steps per revolution and for every step, it will cover 1.8°.  This NEMA 34 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are CW230, CW250, and CW860.


Electrical Specification

  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 12.0Nm(
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.7ohms± 10%
  • Inductance: 7.9mH±20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 151.5mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 5.3kg

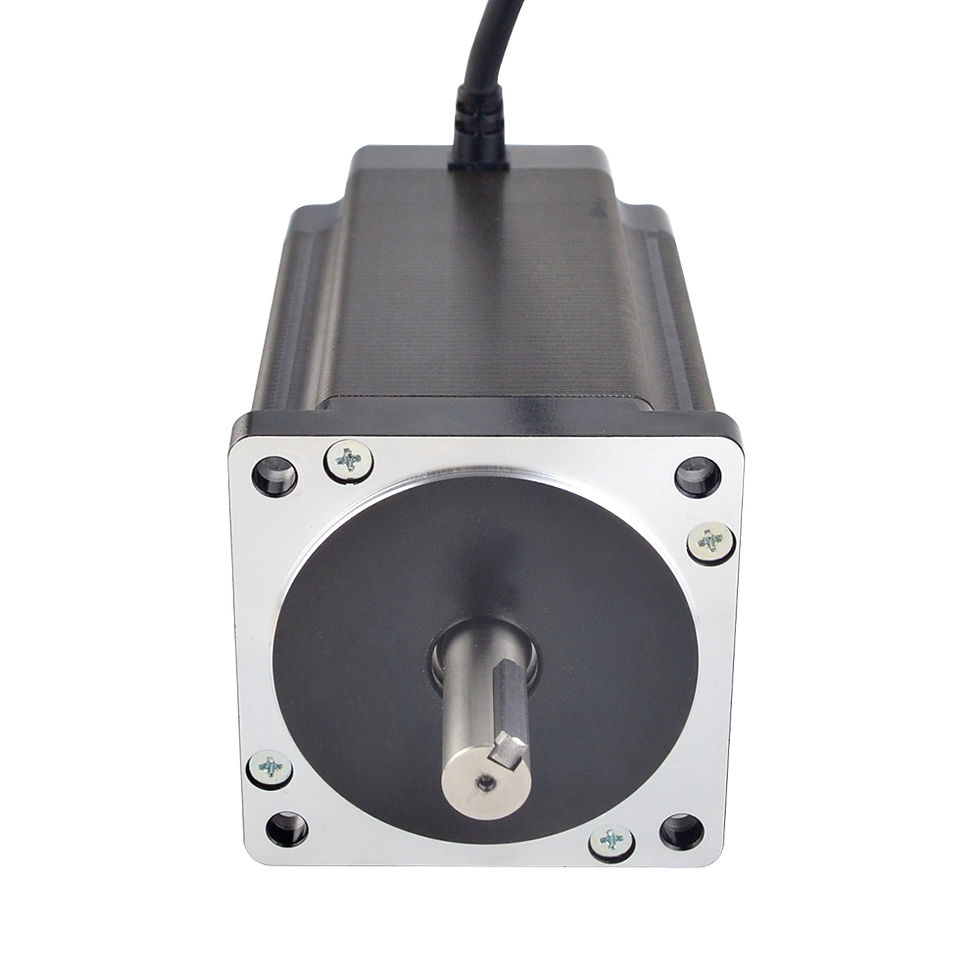

Nema34 Stepper Motor

SKU: 104



    2-3 Days for Available stock Items

    7-14 Days for Out of Stock Items
